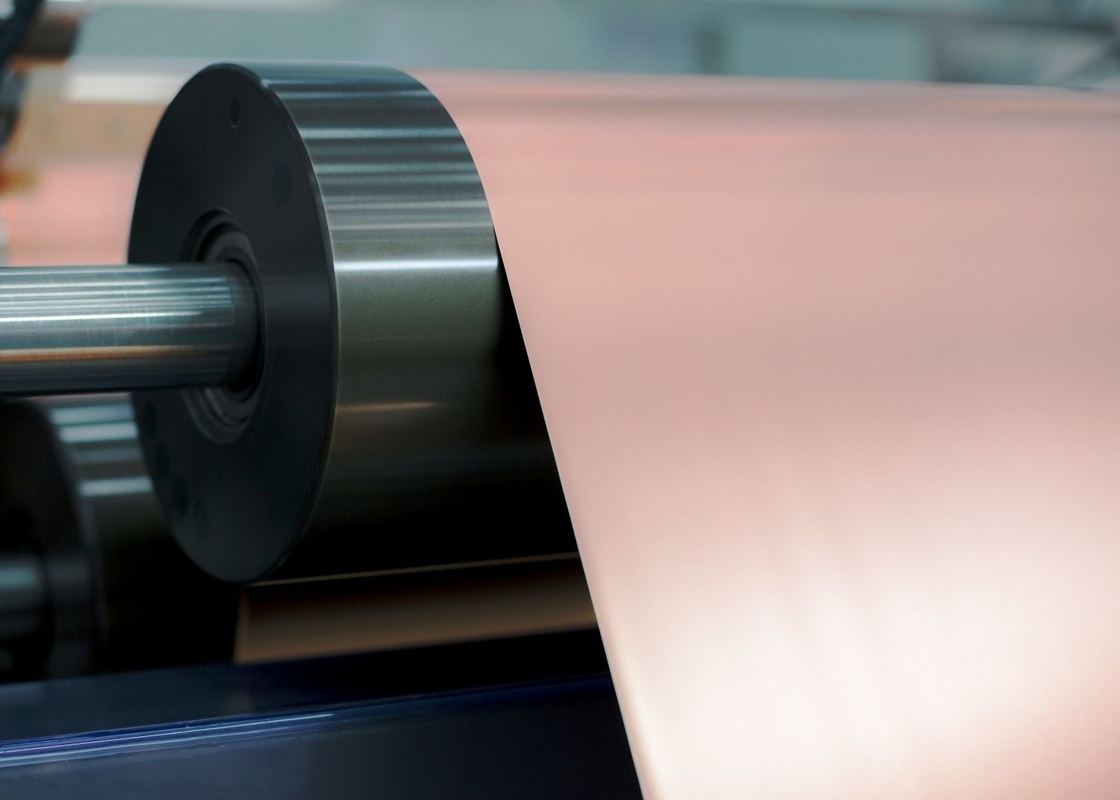

The raw foil, which has a glossy surface with ultra low roughness on both sides, is treated with JIMA's proprietary micro-roughening process to achieve high anchoring performance and also ultra low roughness. It offers high performance in a wide range of fields, from rigid printed circuit boards that prioritize transmission properties and fabrication of fine pattern to flexible printed circuits that prioritize transparency.
Typical Properties of Matte Side Treatment Low Profile Copper Foil
| Classification | Unit | Requirement | Test Method | |||||
| Nominal thickness | um | 10 | 12 | 16 | 25 | 35 | IPC-4562A | |
| Area Weight | g/m² | 98±4 | 107±4 | 153± 5 | 228± 8 | 285±10 | IPC-TM-650 2.2.12.2 | |
| Purity | % | ≥99.8 | IPC-TM-650 2.3.15 | |||||
| Roughness | Shiny side (Ra) | սm | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | IPC-TM-650 2.3.17 |
| Matte side(Rz) | um | ≤4.0 | ≤4.5 | ≤5.5 | ≤6.0 | ≤8.0 | ||
| Tensile Strength | R.T.(23°C) | Mpa | ≥260 | ≥260 | ≥280 | ≥280 | ≥280 | IPC-TM-650 2.4.18 |
| H.T.(180°C) | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | |||
| Elongation | R.T.(23°C) | % | ≥5 | ≥6 | ≥8 | ≥10 | ≥12 | IPC-TM-650 2.4.18 |
| H.T.(180°C) | ≥5 | ≥6 | ≥7 | ≥8 | ≥8 | |||
| Peel Strength(FR-4) | N/mm | ≥0.7 | 0.8 | 1.0 | 1.1 | 1.2 | IPC-TM-650 2.4.8 | |
| lbs/in | ≥4 | ≥4.6 | ≥5.7 | ≥6.3 | ≥6.9 | |||
| Pinholes & Porosity | Number | No | IPC-TM-650 2.1.2 | |||||
| Anti-oxidization | R.T.(23°C) | 180 | ||||||
| R.T.(200°C) | 60 | |||||||
Standard Width: 520mm 1040mm 1100mm, Max.1300mm May according to the customer request tailor.
