Lithium Battery 6um Ultra Thin Copper Foil High Precision

Negotiations
MOQ
Negotiations
Price
Lithium Battery 6um Ultra Thin Copper Foil High Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 4.5um 6um Rolled Copper Foil For Lithium Battery Plain
Thickness: 6um 9um 12um 18um 35um 50um 70um
Standard Width: 520mm,Max 630mm,can Be Cutting As Request
Application: EV Battery, Lithium Battery, Lithium-ion Batteries, Electric Vehicles Li-ion Battery, Lithium Ion Battery
ID: 76MM
Package: Standard Wooden Box
Sample: Can Supply
Highlight:

6um ultra thin copper foil

,

Lithium Battery ultra thin copper foil

,

6um lithium battery copper foil
Basic Infomation
Place of Origin: CHINA
Brand Name: JIMA
Certification: YS/T 1039-2015
Model Number: THB112
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 10~30days
Payment Terms: L/C, T/T
Supply Ability: 120000 m2/month
Product Description

4.5um 6um Rolled Copper Foil for Lithium Battery Plain



Product Detail

The Battery Rolled Copper Foil is a cathode material produced by JIMA Copper specifically for high-end batteries. The uniform thickness and flat shape of the copper foil makes it easy to coat and not to peel off; the uniform grain size of the material can effectively increase the charge/discharge times of the battery and reduce battery failure and improve cycle life; the purity of the copper foil is extremely high and it has excellent electrical conductivity; and the rolled copper foil produced by JIMA Copper has excellent flexibility and hydrophilic. We can also customize our products to meet different customer requirements.
Rolled copper foil is a product made by repeatedly rolling and annealing high-precision copper strip (thickness is usually less than 150 microns) based on the principle of plastic processing (thickness is usually between 4-100 microns and width is usually less than 800 mm). Its ductility, bending resistance and conductivity are better than electrolytic copper foil, and the copper purity is also higher than electrolytic copper foil.
Copper foil is an indispensable raw material for making printed circuit board (PCB), copper clad laminate (CCL) and lithium-ion battery. Flexible circuit board is flexible, which gets rid of the limitations of conventional circuit plane design, and can arrange lines in three-dimensional space. Its circuit is more flexible and has higher technical content. Calendered copper foil has become the best choice for manufacturing flexible printed circuit board because of its flexibility and bending resistance.



Specification

  • Hard temper & soft temper
  • Thickness: 6um 9um 12um 18um 35um 50um 70um
  • Width:250～660mm, standard width: 520mm, Max. 630mm. can be cutting as request
  • Wooden box package
  • Roll Length& core length: as per request
  • Roll inner diameter and outer diameter: as request
  • Certificate: ISO14001
  • Lead time: 15-20days
  • Welcome visit us factory via video



Features

  • Low roughness
  • High ductility
  • High strength
  • High oxidation resistance

Application

  • EV battery, Lithium battery, lithium-ion batteries, Electric Vehicles Li-ion Battery, lithium ion battery
  • Electromagnetic Shielding
  • Heat dissipation
  • Energy storage
  • Power batteries
  • 5G Mobile antenna
  • 5G communication
  • Adhesive shielding material
  • Samsung Mobile
  • Battery materials

Typical Properties of Lithium Battery Plain Rolled Copper Foil

Classification Unit Requirement   Test Method
Normal Thickness um 6 8 9 10 12 18 35 50 70 GB/T29847-2013
Area Weight g/m² 54±2 66~70 74.5~79.5 83~89 103~108.5 145~159 289.8~317.2 435±15 579.5~628.3 GB/T29847-2013
Purity(100) % ≥99.97   GB/T5121
Surface Roughness Shiny Side(Ra) սm ≤0.20   GB/T29847-2013
Tensile Strength

Hard Temper

 N/nm 420-450 420-450 420-450 440-470 440-470 450-480 440-460 420-450 380-410 GB/129847-2013
Soft Temper 160-180 160-180 160-180 160-180 160-180 170-190 180-210 200-220 210-240
Elongation Rate

Hard Temper

 % 1.0-1.1 1.0-1.2     ≥8 ≥9 ≥11 ≥13   GB/129847-2013
Soft Temper ≥6 ≥7 ≥7 ≥7 ≥7 ≥8 ≥11 ≥13 ≥20
Surface Quality   No Wrinkle, No Color Difference, No Scratche, No Pit and Salient Point
Anti-oxidization 140℃/15min No color change and No oxidation
Storage Condition   Temperature≤25°C, Relative Humidity≤60%, 180 days





Cutting Machine Image (Width can be cutting)

Lithium Battery 6um Ultra Thin Copper Foil High Precision 0



Packing

Coiled, in wooden case packing

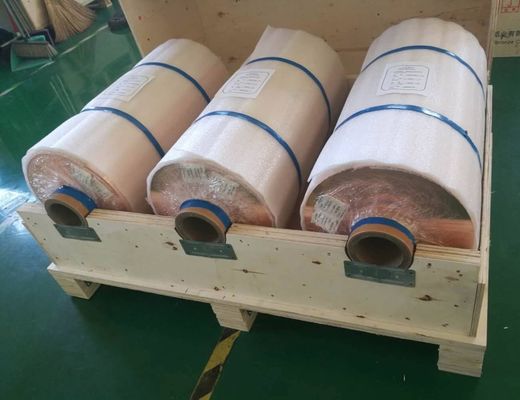

Package Image

Lithium Battery 6um Ultra Thin Copper Foil High Precision 1
