105μm High Precision Ultra Wide Calendered Thick Copper Foils

JIMA Copper is doing copper foil of Li-ion battery 4.5um to 14um more than 12 years. and production capacity 150000tons /years.


Features:


1,Low roughness


2,High density


3,High-thermal conductivity


4,High voltage resistance


5,High precision, ultra wide format


6,Thick copper structure (provides higher mechanical strength and durability


7,Provides better electrical conductivity and heat dissipation performance)


8,Calendering achieves excellent flatness


9,Excellent electrical conductivity


10,Good thermal conductivity



Application:

1,Power Modules, Energy Storage Inverters, Automotive Electronic Components (Electronic Controls, Electric Drives)

2,Electronics industry (Printed Circuit Boards (PCBs)

3,Flat Panel Displays (FPDs), Semiconductor packaging)

4,Telecommunications industry (Base station antennas, Optical communication components)

5,Automotive industry (Electric vehicle batteries, Automotive electronics)

6,Aerospace industry (Avionics systems, Satellite communication systems)

7,Renewable energy industry (Wind turbines, Solar panels)

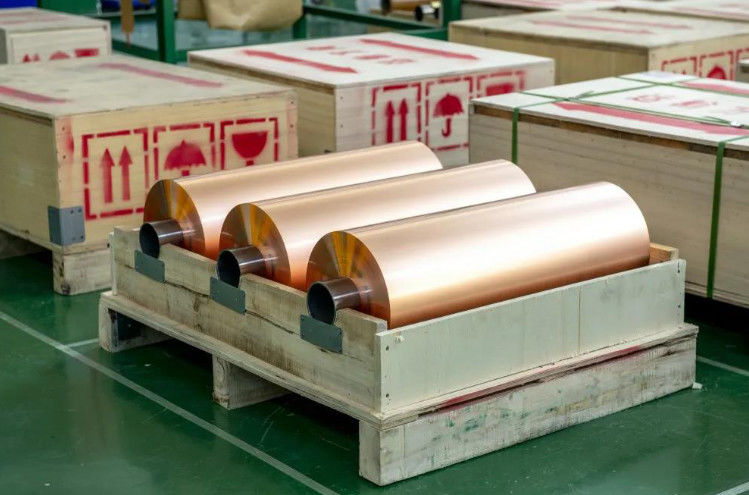

Details Package: wooden box

FAQ:

Q1: delivery time ?

A: The general delivery time is 10~15 working days.

Q2: What's your minimum order quantity?

A: The MOQ is 10kg.

Q3. what is your standard width?

A:600mm, 900mm, 1200mm, and 1500mm we accept customization for the width. we can cut it into any size that you demand after pass

discussing.


105μm High Precision Ultra Wide Calendered Thick Copper Foils Standard Sample Digital:

Specifications (105 μm)

Mechanical Properties

Matte side

≤6 μm

Tensile strength

≥300 MPa

Elongation

>8%

Actual density

8.81g/cm³

Peel Strength(FR4)

≥2.3N/mm

Typical Properties Of 105μm High Precision Ultra Wide Calendered Thick Copper Foils:

Remark: accept customization, Standard Width, 600mm, 900mm, 1200mm, and 1500mm.
