RoHS ED Electrolytic Thin Copper Foil 1 / 2 Oz Thickness High Coarse

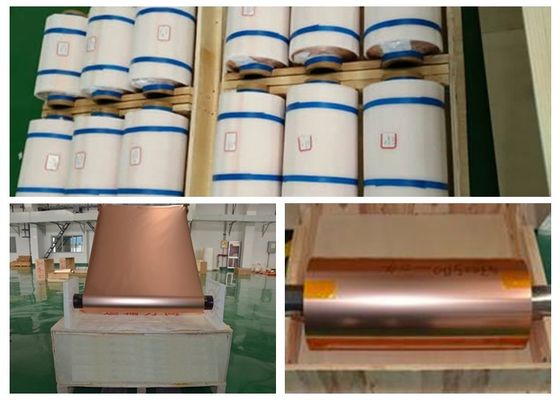

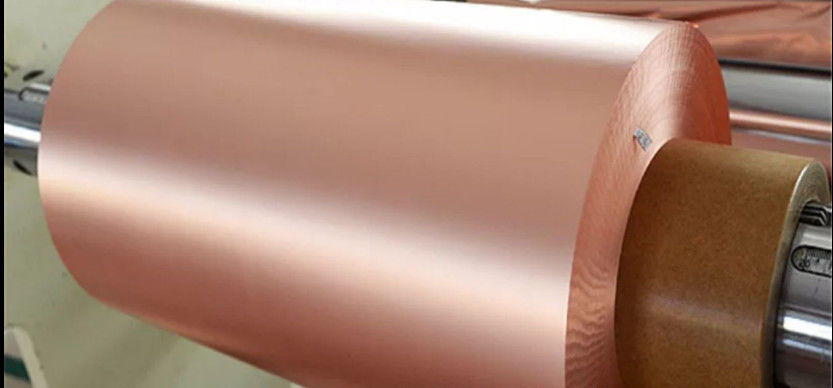

ED Electrolytic Thin Copper Foil Description:
ED (Electro-Deposited) electrolytic thin copper foil refers to a type of copper foil that is produced through an electroplating
process. It is commonly used in various industries, including electronics, printed circuit board (PCB) manufacturing, and
lithium-ion battery production.
Compare between CA copper foil and ED copper foil
Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed
circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines
printed circuit board also used some calendering copper Foil.
3. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.
ED Electrolytic Thin Copper Foil Specifications:
Thickness: 12micron-70micron
Width: 5-520 mm
Length: 500-5000 M
Coil ID: 76 mm,152 mm
Purity:99.8%
ED Electrolytic Thin Copper Foil Features:
The treated foil in red
High peel strength
Anti foil cracking by high elongation at elevated temperature.
Eco-friendly products and processes
Good etch ability
Excellent adhesion to etching resist
Typical properties of High coarse copper foil
Classification
|
Unit
|
Requirement
|
Test Method
|
|||||
Foil Designation
|
/
|
H
|
M
|
1
|
IPC-4562A
|
|||
Nominal thickness
|
/
|
1/2 OZ
|
3/4 OZ
|
1 OZ
|
IPC-4562A
|
|||
Area Weight
|
g/㎡
|
150±5
|
228±8
|
285±10
|
IPC-TM-650
2.2.12.2
|
|||
Purity
|
％
|
≥99.8
|
IPC-TM-650
2.3.15
|
|||||
Foil Profile
|
Shiny side (Ra)
|
սm
|
≤0.4
|
≤0.4
|
≤0.4
|
IPC-TM-650
2.3.17
|
||
Matte side(Rz)
|
um
|
≤8
|
≤10
|
≤12
|
||||
Tensile Strength
|
R.T.(23℃)
|
Mpa
|
≥220
|
≥235
|
≥280
|
IPC-TM-650
2.3.18
|
||
Elongation
|
R.T.(23℃)
|
％
|
≥2
|
≥3
|
≥3
|
IPC-TM-650
2.3.18
|
||
Peel Strength(FR-4)
|
CEM-1
|
N/mm
|
≥1.5
|
≥1.7
|
≥2.0
|
IPC-TM-650
2.4.8
|
||
PTC
|
≥0.5
|
≥0.6
|
≥0.8
|
|||||
Pinholes&porosity
|
Number
|
No
|
IPC-TM-650
2.1.2
|
|||||
Anti-oxidization
|
R.T.(23℃)
|
day
|
180 or customize
|
/
|
||||
H.T.(200℃)
|
Minutes
|
60 or customize
|
/
|
|||||
Standard Width,1290mm,May according to the customer request tailor.
Application:
Positive temperature coefficient resistance
