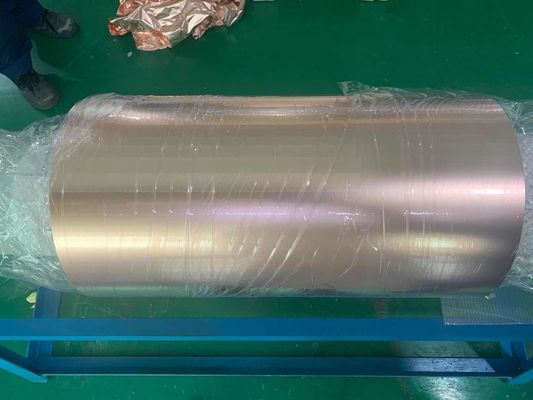

12um ED electrolytic High ductility copper foil for Polyimide board
Quickly details
T: 0.012 mm
W: 1380 mm
L: 500-5000 M
ID: 76 mm,152 mm12um ED electrolytic High ductility copper foil for Polyimide board
Purity:99.8%
Features:
1. Treated foil in red
2. Good Conductive performance, Excellent adhesion to etching resist
Application:
Epoxy board
Compare between CA copper foil and ED copper foil
1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)
2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.
FAQ:
Q1: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3. what is your standard width?
A: 1380 mm,we accept customization for the width
Typical properties of high ductility copper foil
|
Classification
|
Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥150 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥5 | ≥5 | ≥10 | ≥10 | ≥15 | ≥15 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | / | |||||||||||
3. Standard Width,1380(±1)mm,May according to the customer request tailor.
We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
