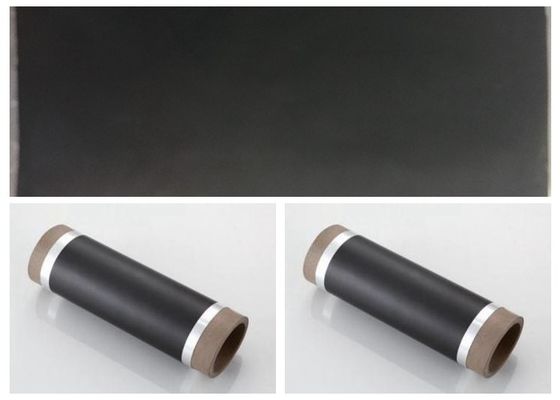

Conductive Nano graphite coated aluminum foil for Lithium-ion super capacitor.
CAW1 is one of the highest-quality “CA” series product, it took five years for the research and development of the product , Nano graphite with excellent performance is produced and used as raw material for the functional coating. Due to high conductivity and small size of the Nano graphite ,the obtained functional coating is very thin and highly conductive. The thickness of the functional coating is APPROX.400nm,resulting in improvement of both energy density and power density .we have independent intellectual property for this technology.
Quickly details.
| Double side coating | A: 4~6um B: 2~3um |
| Purity | > 99.9% |
| Density | 0.5 -2.0g/m2 |
| Treatment | Coated |
| Packing detail | Wooden box |
| Aluminum foil thickness | 12-30um |
| Color | Black/Gray |
Features:
1. Protect the AI current collector from surface corrosion and oxidation.
2. Reduce interface resistance
3. Reduce internal resistance of the cell.
4. Decrease polarization and
5. Improve the rate capability and
Application:
Super capacitor.
Lithium-ion super capacitor.
Physical and chemical properties (MTC of CAW1 )
| Planar density (Both side) |
0.5g/m2 0.5±0.2mg/cm2 |
1.0g/m2 1.0±0.2mg/cm2 |
1.5g/m2 1.5±0.3mg/cm2 |
2.0g/m2 2±0.3mg/cm2 |
| Covering rate | min.80% | min.901% | min.95% | min.100 |
| Conductivity | ~30S/cm | ~30S/cm | ~30S/cm | ~30S/cm |
| Peeling Strength | 2.0N | 2.5 N | 2.8N | 2.8N |
| Corrosion resistance | No exfoliation | No exfoliation | No exfoliation | No exfoliation |
FAQ:
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q2. what is your standard width?
A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.
Q3. Length per roll?
500-5000meter.
Q4. what is the Internal diameter?
76/152/ custom.
